CHSF/1023 | FORKLIFT LEAF CHAIN BL1023 5M

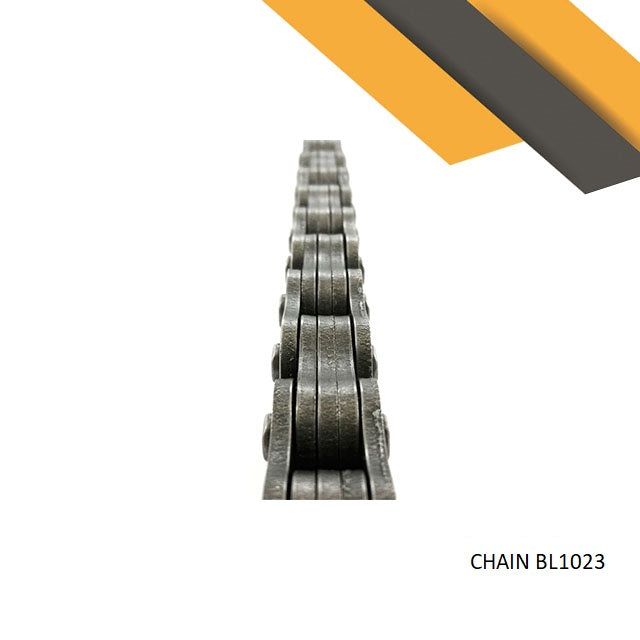

BL1023 Forklift Leaf Chain – 5 Metres

Heavy-duty BL1023 leaf chain for compatible forklift mast lifting systems and industrial material-handling equipment.

BL1023 is an ANSI BL-series leaf chain with a 31.75 mm pitch and 2 × 3 plate lacing configuration. This type of chain is commonly used in forklift lifting and load-supporting assemblies where correct chain specifications are essential.

Product Specifications

• Sunbrite SKU: CHSF/1023

• Product Type: Forklift Mast Leaf Chain

• Chain Reference: BL1023

• Chain Series: ANSI BL / ISO LH2023

• Pitch: 31.75 mm (1¼ inch)

• Lacing Configuration: 2 × 3

• Pin Diameter: Approximately 11.04 mm

• Pin Length: Tsubaki reference dimensions 28.90 / 32.60 mm

• Plate Thickness: Approximately 4.8 mm

• Plate Height: Approximately 30.1 mm

• Reference Minimum Tensile Strength: 141 kN (Tsubaki specification; verify actual supplier rating)

• Reference Weight: Approximately 4.69 kg/m

• Material: Steel (confirm grade)

• Condition: New

• Manufacturer Type: Aftermarket

• Quantity Supplied: 5 metres per purchase

• Selling Price: R2,890.00 per 5 metres

Important Ordering Information

Sunbrite Forklifts sells this chain in five-metre lengths.

Before ordering, confirm the existing chain reference, pitch, plate lacing configuration, dimensions and forklift mast specifications.

BL1023 must not be substituted with another leaf chain size without checking the forklift manufacturer's requirements.

Forklift lifting chains are safety-critical components. Replacement and installation must follow the forklift manufacturer's specifications and should be performed by qualified personnel.

Please confirm whether connecting pins, anchor fittings or other installation components are required. These are not assumed to be included.

Contact Sunbrite Forklifts for assistance identifying the correct replacement chain.

Available from Sunbrite Forklifts, South Africa.
