BPSF/3-23 | WHEEL CYLINDER (RH) 6FD20-30

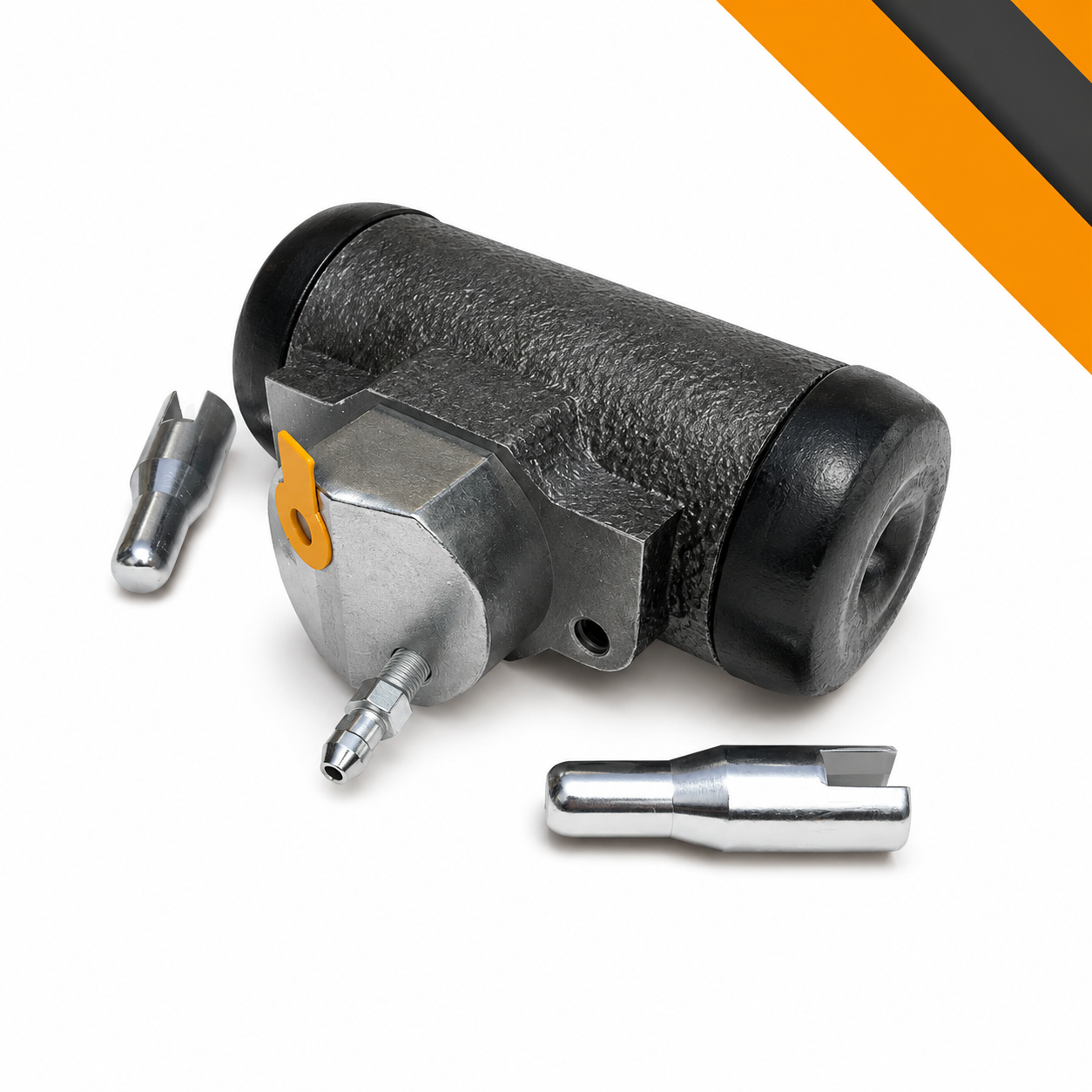

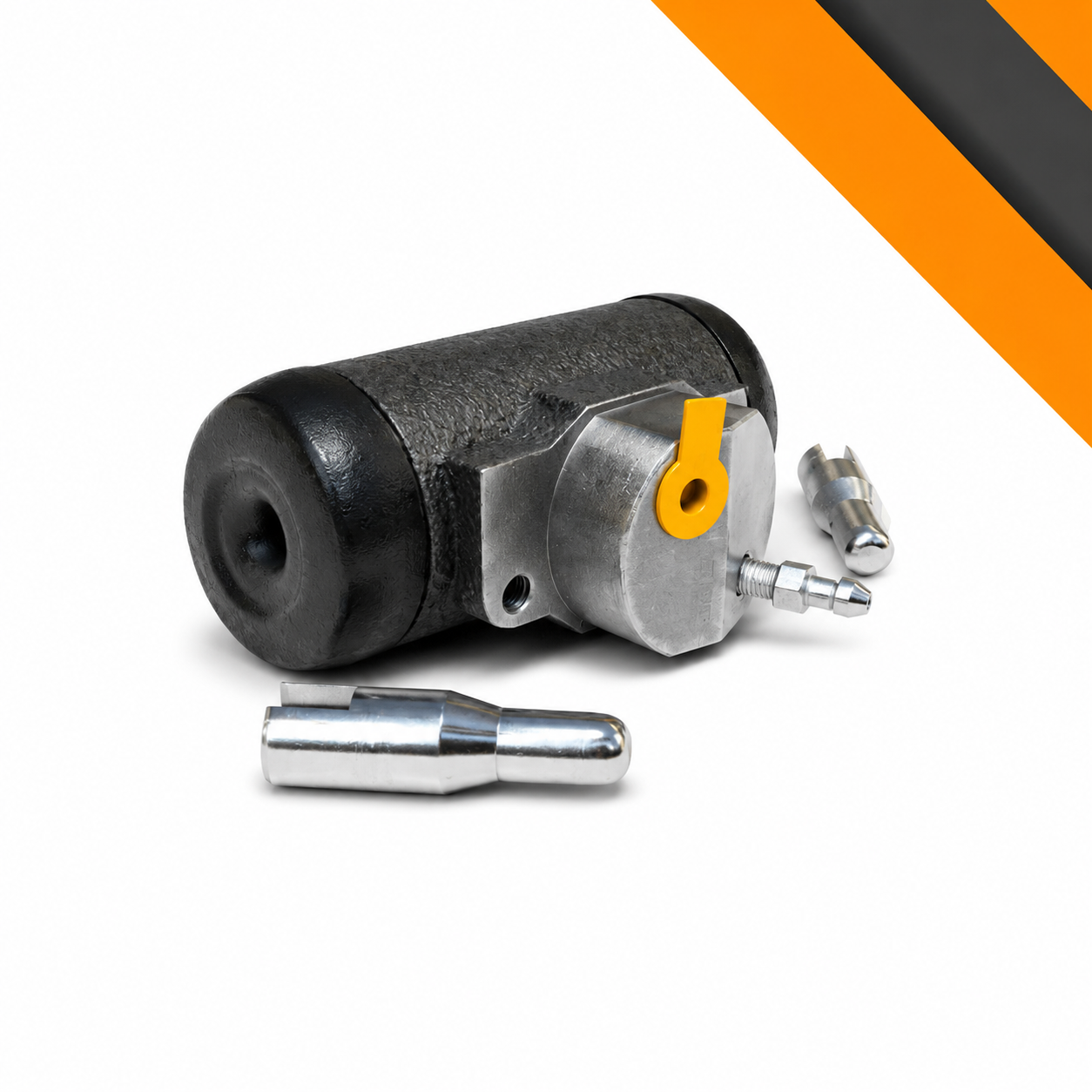

Toyota Forklift Brake Wheel Cylinder – Right Hand (RH) 6FD20-30

Replacement right-hand hydraulic brake wheel cylinder for selected Toyota 6FD20-30 forklift applications.

The wheel cylinder is used in the forklift's hydraulic drum braking system. It converts hydraulic pressure into movement that operates the brake shoes, helping provide effective braking performance.

Product Specifications

• SKU: BPSF/3-23

• Product Type: Hydraulic Brake Wheel Cylinder

• Forklift Brand: Toyota

• Listed Application: 6FD20-30

• Mounting Position: Right Hand (RH)

• Cylinder Bore Diameter: 28.58 mm (1 1/8 inches)

• Housing Length: 78 mm

• Neck Diameter: 30 mm

• Number of Mounting Holes: 2

• Construction: Cast iron housing (confirm material)

• Condition: New (if confirmed)

• Manufacturer Type: Aftermarket (if confirmed)

Important Fitment Information

Before ordering, confirm the forklift model, serial number, original part number, cylinder bore, mounting-hole spacing, hydraulic port connections and right-hand mounting position.

Left-hand and right-hand brake wheel cylinders are not necessarily interchangeable.

Contact Sunbrite Forklifts for assistance identifying the correct replacement wheel cylinder.

Available from Sunbrite Forklifts, South Africa.
